CamaroFacts

Generation 5, Zeta platform, 2010–2015

Fifth Generation

The comeback, with a movie star's head start.

Silver 2010 Camaro SS at auto show
2010 Camaro SS Public domain (IFCAR), via Wikimedia Commons Original photograph

The Camaro came back as a 2010 model on GM's rear-drive Zeta platform, closely following a 2006 concept that echoed the 1969 car. Movie cars styled after the concept had already played Bumblebee in the 2007 Transformers film, so the production car had a following before it reached showrooms.

The convertible returned for 2011, and two old names came back with opposite philosophies: the supercharged ZL1 in 2012 and the naturally aspirated, track-focused Z/28 in 2014.

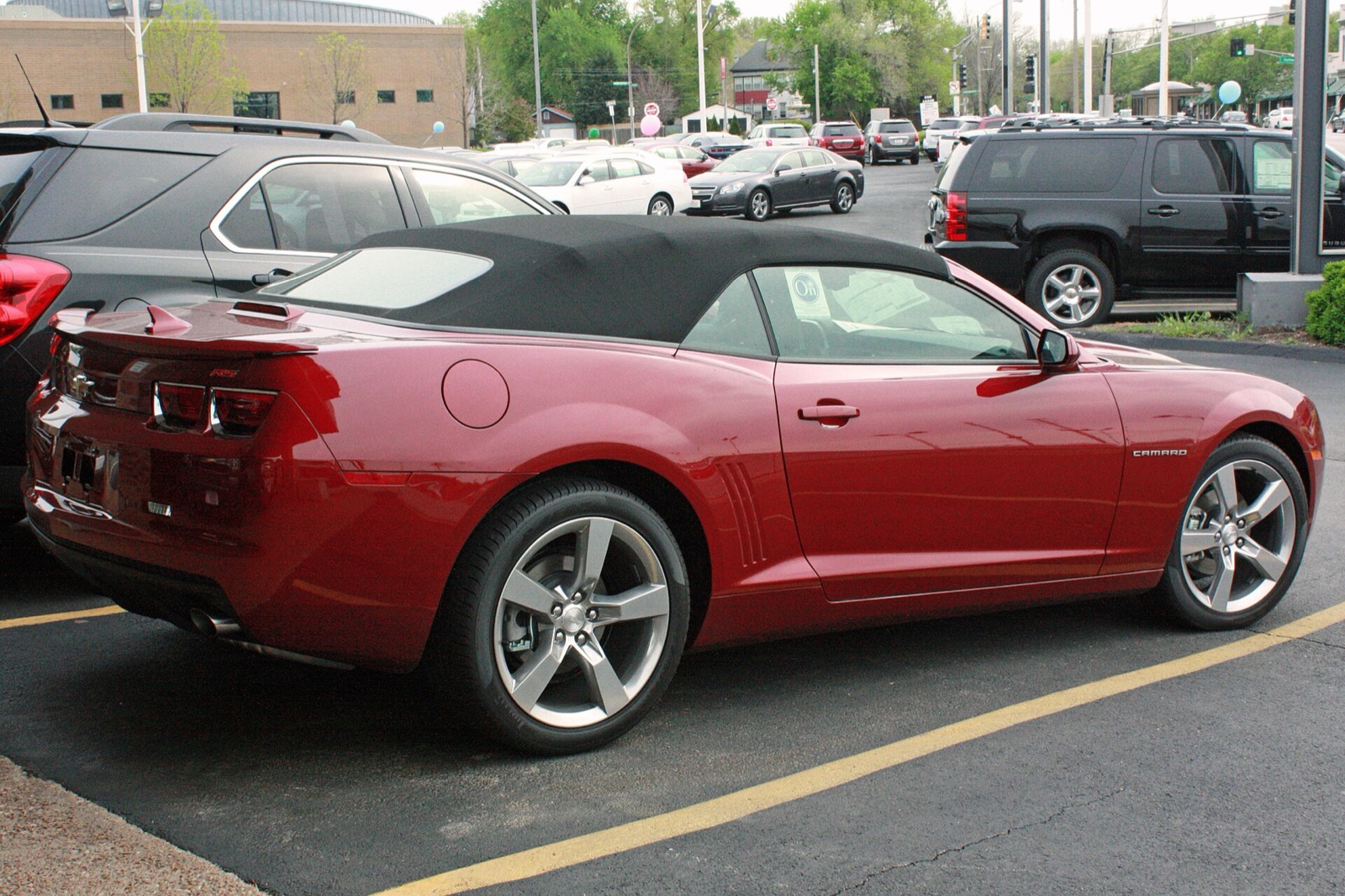

Red 2011 Camaro convertible
2011 Camaro convertible Photo: Ryanandlenny, CC BY 3.0, via Wikimedia Commons Original photograph License
U.S. sales, year by year Calendar-year U.S. deliveries, rather than model-year production. Each year link leads to the figure and its sources.
U.S. sales, year by year 2010: 81,299; 2011: 88,249; 2012: 84,391; 2013: 80,567; 2014: 86,297; 2015: 77,502. Bars start at zero; units: cars. 2010 81,299 2011 88,249 2012 84,391 2013 80,567 2014 86,297 2015 77,502

The Road Back

A retro concept designed under Bob Boniface at GM's Warren studio was unveiled at the Detroit show in January 2006 to a strong reception. Its long hood, short deck and muscular rear haunches deliberately recalled the 1967–69 cars, especially 1969, with tighter modern surfacing. GM approved a production version that stayed close to it, and the car went on sale in April 2009 as a 2010 model.

The Transformers Effect

Bumblebee's newer form in the 2007 Transformers film looked like Chevrolet's concept, but it was a movie prop. HOT ROD's November 2006 firsthand feature describes two cars built at Saleen in Troy, Michigan, using Pontiac GTO mechanicals and fiberglass bodies supplied by GM. The dashboard shell hid GTO instruments, and some apparent metal trim and wheel details were fiberglass. These were purpose-built filming cars, distinct from both the show concept and the production Camaro that reached buyers in 2009. The film also used an older Camaro, often identified as 1977; that identity is separate from the two props styled after the concept.

How the modern Bumblebee filming cars were built
How the modern Bumblebee filming cars were built GM supplies fiberglass bodies and design data. Pontiac GTO donor cars supply the unibody, running gear and instruments. Saleen in Troy fabricates two filming cars. The filming props, show concept and production Camaro are distinct vehicles. GM supplies Fiberglass bodies Design data Pontiac GTO Unibody and running gear Instruments and trim Saleen Troy, Michigan Two filming cars Camaro appearance, adapted GTO structure
GM supplied fiberglass bodies and design data. Saleen adapted Pontiac GTO unibody cars and mechanicals into two filming props. These are distinct from the show concept and production Camaro; this is a construction overview, not a dimensional drawing. Original CamaroFacts diagram. HOT ROD, November 2006 firsthand report.

Chevrolet's 2009 Transformers-edition announcement quoted marketing director Karen Rafferty describing customer requests for Bumblebee and offered a Rally Yellow LT or SS appearance package. That documents a commercial response to interest, not a measured sales effect. Chevrolet sold 61,648 Camaros in calendar 2009 and 81,299 in 2010. An earlier account claimed yellow's share rose from under five percent by about ten percentage points, but no dated color figures or analysis of cause support it. The annual totals alone do not show how many purchases the films caused.

Launch and the Convertible

The 2010 car launched as a coupe only, with a 3.6-liter direct-injected V6 at 304 hp and a 6.2-liter V8 in the SS: the 426 hp LS3 with the manual, the 400 hp L99 with the automatic.

Yellow 2010 Camaro SS Transformers Edition
2010 Camaro SS Transformers Edition Photo: sv1ambo, CC BY 2.0, via Wikimedia Commons Original photograph License
2010 SS: transmission changes the power rating
2010 SS: transmission changes the power rating Manual: 426 hp; Automatic: 400 hp. Chevrolet lists 426 hp with the six-speed manual and 400 hp with the automatic. The automatic also has Active Fuel Management. These are the 2010 production-brochure ratings; no peak RPM or later-model rating is inferred. Manual 426 hp Automatic 400 hp
Chevrolet lists 426 hp with the six-speed manual and 400 hp with the automatic. The automatic also has Active Fuel Management. These are the 2010 production-brochure ratings; no peak RPM or later-model rating is inferred. Original CamaroFacts diagram. Chevrolet 2010 US production brochure, PDF p. 5.

Convertible production started on January 31, 2011, at Oshawa, Ontario. Chevrolet built 106,987 Camaros for 2011, the generation's biggest year. GM's October 19, 2010 release said all 100 planned $75,000 Neiman Marcus convertibles were claimed by telephone reservation in three minutes, with delivery expected in spring 2011. The later reported build count is 75, as the 2011 year page explains. Reservations and completed builds are different measures; the sources do not explain the gap.

Body length and axle spacing The first and last model years on the same scale. Wheelbase measures axle spacing; overall length includes the body beyond them. Variant-specific lengths keep their model labels.
Body length and axle spacing 2010 overall length: 190.4 in; 2010 wheelbase: 112.3 in; 2015 overall length (ZL1): 190.6 in (ZL1); 2015 overall length (Z/28): 192.3 in (Z/28); 2015 wheelbase: 112.3 in. Bars start at zero; units: inches. 2010 overall length 190.4 in 2010 wheelbase 112.3 in 2015 overall length (ZL1) 190.6 in (ZL1) 2015 overall length (Z/28) 192.3 in (Z/28) 2015 wheelbase 112.3 in
Original CamaroFacts figure. Sources: 2010 reference table 2015 reference table

ZL1 and the Modern COPO

The ZL1 name returned for 2012 for the first time since the 69 COPO cars of 1969, this time on a regular-production model with a supercharged 6.2-liter LSA at 580 hp and 556 lb-ft. It was reportedly meant to be a Z/28 until GM decided a supercharged grand tourer did not fit that name; 1,971 were built for 2012.

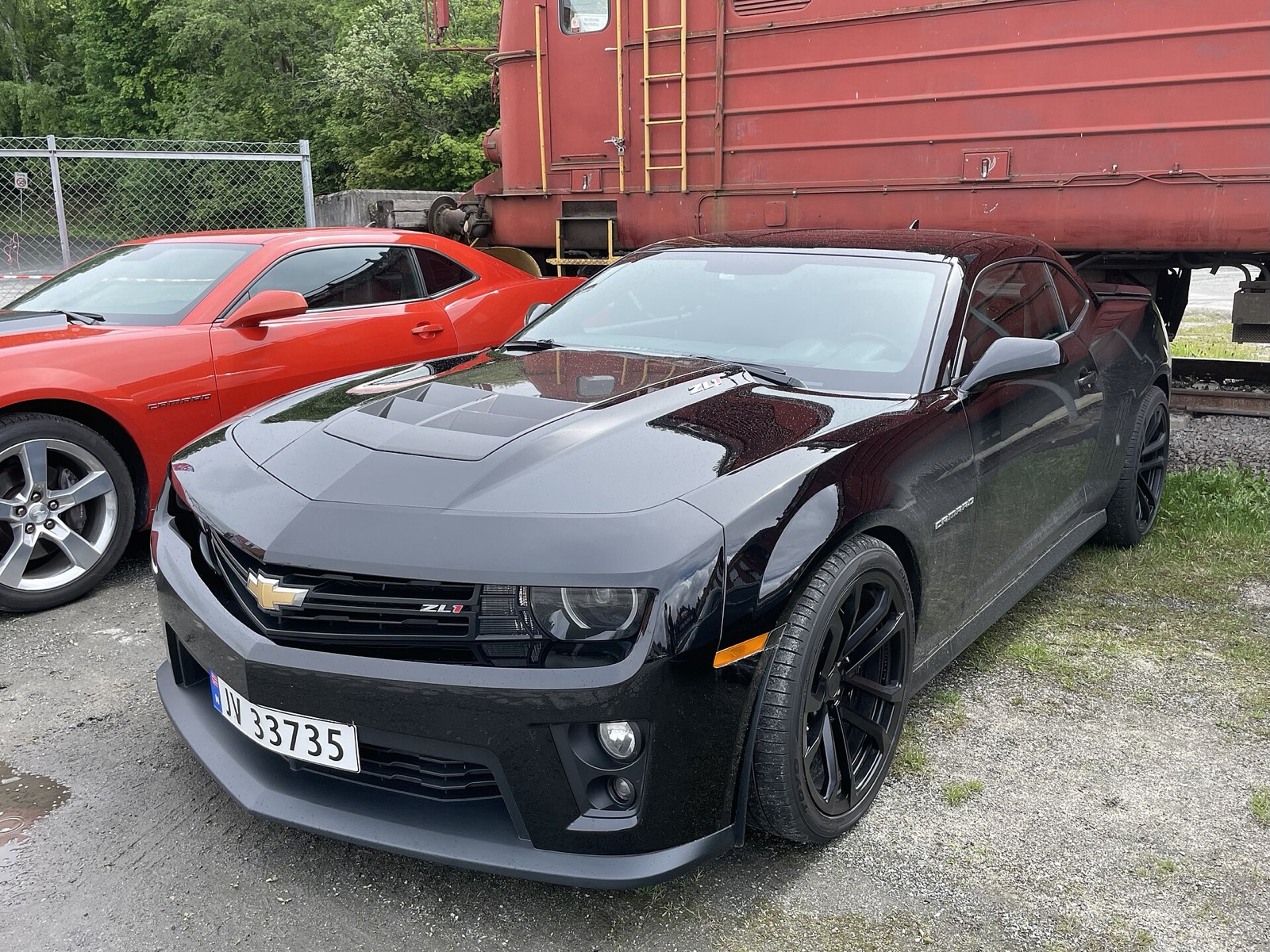

Black 2012 Camaro ZL1
2012 Camaro ZL1 Photo: Ssu, CC BY-SA 4.0, via Wikimedia Commons; plate blurred Original photograph License

The same year Chevrolet Performance revived COPO as a factory-built, race-only drag car for NHRA classes, and built 69 of them to echo 1969. The program has run every year since; see the rare and significant Camaros. 2012 also brought a 45th Anniversary package in Carbon Flash Metallic, of which 8,283 were built.

1LE Returns, and a Hot Wheels Camaro

For 2013 the 1LE package returned on the SS: a close-ratio six-speed with a 3.91 axle, 285-width tires on black 20-inch wheels, a strut-tower brace, monotube rear dampers and larger stabilizer bars, aimed like the original at SCCA racers. Chevrolet billed the Hot Wheels Edition in Kinetic Blue, 1,524 cars, as the first full-size production Hot Wheels car.

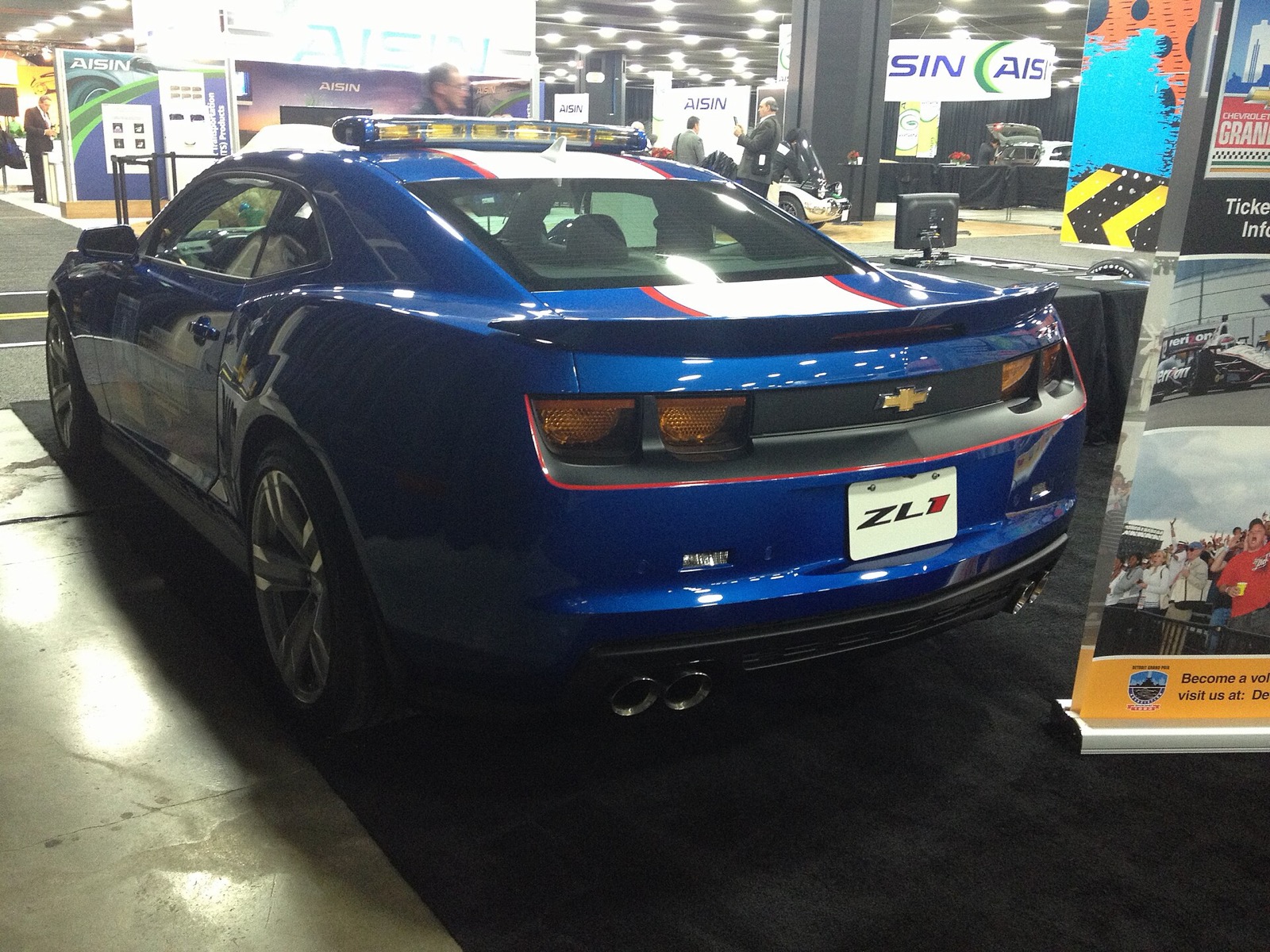

Blue 2013 Camaro ZL1-badged pace/show car, rear three-quarter, indoor auto-show floor
2013 Camaro ZL1 (show/pace car, 2013 NAIAS) Photo: Sarah Larson, CC BY 2.0, via Wikimedia Commons Original photograph License

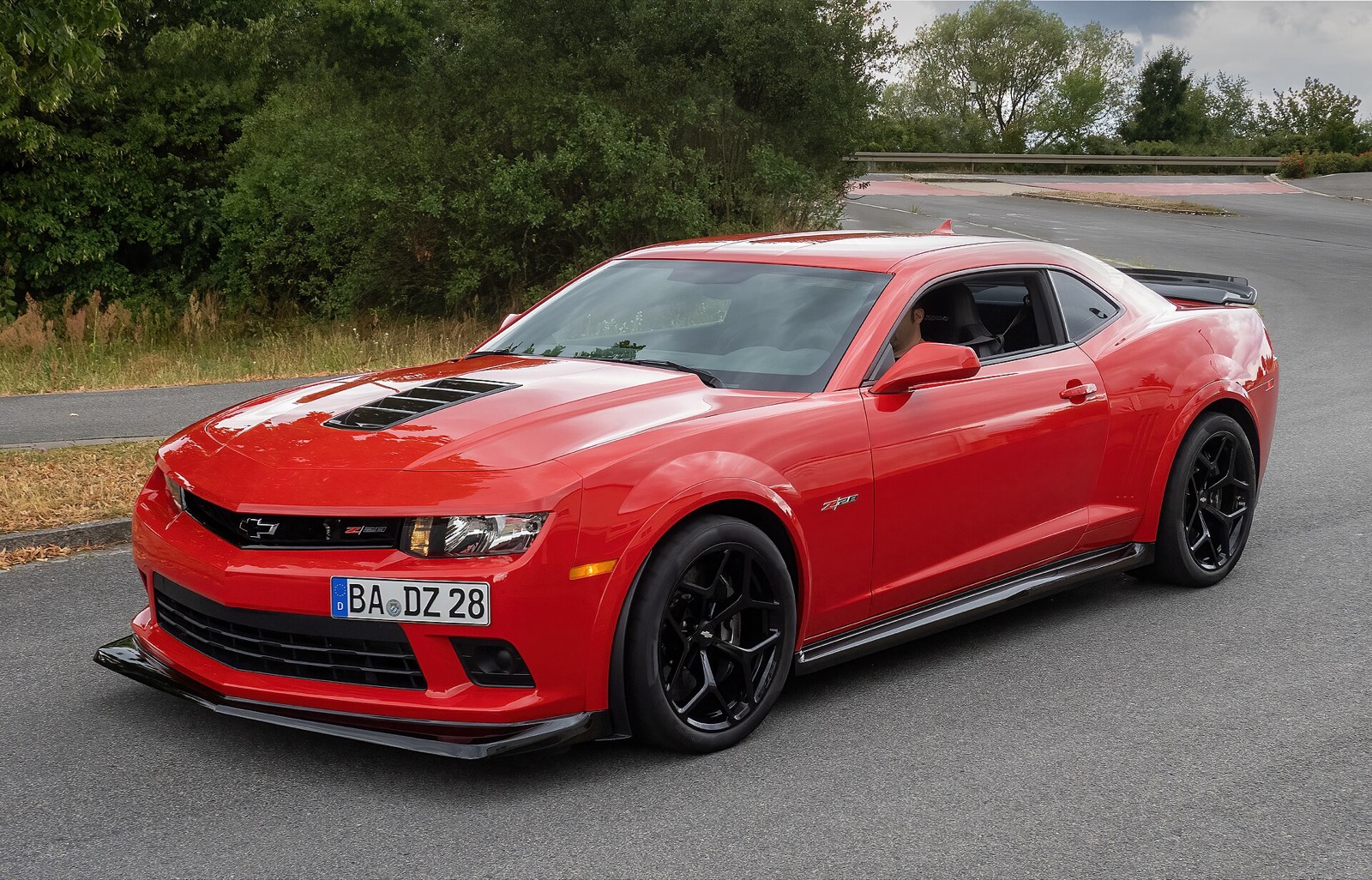

Z/28: Power Isn't the Point

The 2014 Z/28 used the Corvette Z06's naturally aspirated 7.0-liter LS7 at 505 hp, with Multimatic DSSV dampers, carbon-ceramic brakes and aggressive weight reduction. It was built to be the fastest Camaro around a track, not the most powerful, and in testing it lapped several seconds faster than the 580 hp ZL1. Chevrolet built 97,632 Camaros for 2014.

Did you know

  • The 2010 Camaro brought the first standard independent rear suspension in Camaro history, a 4.5-link design, and six standard air bags. GM listed drag at 0.37 for the V-6 and 0.35 for the SS, worse than the last F-body's 0.33 (0.34 for the Z28).
  • GM's figures show how the retro car grew. The 2010 Camaro's 112.3-inch wheelbase was 11.2 inches longer than the last F-body's 101.1, though overall length was 3.1 inches shorter (190.4 against 193.5). It was 1.4 inches wider (75.5) and 3.0 inches taller (54.2).
  • The fifth-generation Camaro rode on Zeta, the rear-drive architecture Holden developed in Australia for the 2006 VE Commodore at a cost approaching A$1 billion. The Camaro was the only Zeta car built in North America; its siblings included the Holden Commodore, Pontiac G8 and, later, Chevrolet SS and Caprice PPV. GM's internal codes were GMX521 for the coupe and GMX511 for the convertible.
  • The Camaro's return meant converting the Oshawa, Ontario, plant to a flexible manufacturing facility, a $740 million investment. Oshawa had been scheduled to close in 2008, putting 2,750 jobs at risk, and some of them were saved by the new Camaro.
Sources for these details
Silver fifth-generation Camaro coupe with dark hood stripes and aftermarket front lip
Silver fifth-generation Camaro coupe with dark hood stripes and aftermarket front lip, front three-quarter view, parked on grass at an outdoor car show; model year not confirmed, 2010–15 Photo: Handelsgeselschaft, CC BY-SA 4.0, via Wikimedia Commons; licence plates blurred Original photograph License
Yellow fifth-generation Camaro coupe with black stripes and a high rear wing
Yellow fifth-generation Camaro coupe with black stripes and a high rear wing, rear three-quarter view, parked on grass; model year not confirmed, 2010–15 Photo: crash71100, CC0, via Wikimedia Commons; licence plates blurred Original photograph License
White fifth-generation Camaro coupe with grey hood stripes
White fifth-generation Camaro coupe with grey hood stripes, front three-quarter view, parked on a town shopping street; model year not confirmed, 2010–15 Photo: Alexandre Prévot, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Red fifth-generation Camaro ZL1 coupe with vented hood and ZL1 grille badge
Red fifth-generation Camaro ZL1 coupe with vented hood and ZL1 grille badge, low front three-quarter view, at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons; faces blurred Original photograph License

Year by year

YearThe year in briefProduction / salesHighest listed engine ratings
2010 The comeback 81,299 US sales (calendar year)
6.2 L V8 (LS3), 426 hp Code: W. SS, manual
2011 The convertible returns 106,987 Total production
6.2 L V8 (LS3), 426 hp at 5,900 rpm Code: W. SS, manual; November 16, 2010 convertible specifications
2012 Two legend names return 90,310 Total production
6.2 L supercharged V8 (LSA), 580 hp at 6,000 rpm Code: P. ZL1 Coupe; the convertible followed for model year 2013
2013 The 1LE returns, and a Hot Wheels Camaro 80,567 US sales (calendar year)
6.2 L supercharged V8 (LSA), 580 hp at 6,000 rpm Code: P. ZL1
2014 The Z/28 returns, and power isn't the point 97,632 Total production
6.2 L supercharged V8 (LSA), 580 hp at 6,000 rpm Code: P. ZL1
2015 The fifth generation signs off 77,502 US sales (calendar year)
6.2 L supercharged V8 (LSA), 580 hp at 6,000 rpm Code: P. ZL1
Centre-console auxiliary gauge pack of a fifth-generation Camaro
Centre-console auxiliary gauge pack of a fifth-generation Camaro, interior detail, at a motor show; model year not confirmed, 2010–15 Photo: David Villarreal Fernández, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
fifth-generation Camaro centre-console four-pack auxiliary gauges
fifth-generation Camaro centre-console four-pack auxiliary gauges, interior detail; model year not confirmed, 2010–15 Photo: Dale Earnhardt Chevrolet, CC BY 2.0, via Wikimedia Commons Original photograph License
Bright green fifth-generation Camaro coupe with black wheels
Bright green fifth-generation Camaro coupe with black wheels, rear three-quarter view, parked on a town street; model year not confirmed, 2010–15 Photo: Alexandre Prevot, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
White fifth-generation Camaro coupe
White fifth-generation Camaro coupe, rear three-quarter view, parked on a cobbled town street; model year not confirmed, 2010–15 Photo: Alexandre Prévot, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Dark blue fifth-generation Camaro coupe
Dark blue fifth-generation Camaro coupe, front three-quarter and side view, parked on a city street by a stone wall; model year not confirmed, 2010–15 Photo: Alexander Migl, CC BY-SA 4.0, via Wikimedia Commons; licence plates blurred Original photograph License
Red fifth-generation Camaro coupe described as a ZL1
Red fifth-generation Camaro coupe described as a ZL1, rear quarter and tail-lamp close-up, at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Red fifth-generation Camaro ZL1 coupe
Red fifth-generation Camaro ZL1 coupe, side profile toward the front, with ZL1 placard at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons; faces blurred Original photograph License

Engines

Years Engine Model Power Torque
2010 3.6 L V6 (LLT) LS, LT 304 hp 273 lb-ft
2011 3.6 L V6 (LLT) LS, LT 312 hp 278 lb-ft
2012–15 3.6 L V6 (LFX) LS, LT 323 hp 278 lb-ft
2010–15 6.2 L V8 (LS3) SS, manual 426 hp 420 lb-ft
2010–15 6.2 L V8 (L99) SS, automatic 400 hp 410 lb-ft
2012–15 6.2 L supercharged V8 (LSA) ZL1 580 hp 556 lb-ft
2014–15 7.0 L V8 (LS7) Z/28 505 hp 481 lb-ft
fifth-generation Camaro dashboard centre stack with MyLink touchscreen
fifth-generation Camaro dashboard centre stack with MyLink touchscreen, climate controls and console gauges, interior detail; model year not confirmed, 2010–15 Photo: Dale Earnhardt Chevrolet, CC BY 2.0, via Wikimedia Commons Original photograph License
Dark red fifth-generation Camaro coupe
Dark red fifth-generation Camaro coupe, rear three-quarter view, parked on a dirt lot in a tropical town; model year not confirmed, 2010–15 Photo: Jeremy, CC BY 2.0, via Wikimedia Commons; licence plates and faces blurred Original photograph License
Dark blue fifth-generation Camaro coupe
Dark blue fifth-generation Camaro coupe, side profile toward the front, parked on a city street; model year not confirmed, 2010–15 Photo: Tony Hisgett, CC BY 2.0, via Wikimedia Commons; licence plates blurred Original photograph License
Black fifth-generation Camaro coupe with silver wheels
Black fifth-generation Camaro coupe with silver wheels, front three-quarter view, on a woodland lane; model year not confirmed, 2010–15 Photo: Alexandre Prévot, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Red fifth-generation Camaro rear decklid spoiler and round fuel door close-up
Red fifth-generation Camaro rear decklid spoiler and round fuel door close-up, detail view, at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Red fifth-generation Camaro SS coupe with black hood stripes
Red fifth-generation Camaro SS coupe with black hood stripes, front three-quarter view, at an outdoor car show next to a silver Camaro; model year not confirmed, 2010–15 Photo: Jeremy, CC BY 2.0, via Wikimedia Commons; licence plates and faces blurred Original photograph License

Special editions

Year Edition Built
2010 Transformers Special Edition 1,916 (to end of 2010)
2010 Synergy Special Edition 2,425
2010 Indy 500 pace-car replica 294
2011 Indy 500 pace-car replica 500
2011 Neiman Marcus Edition convertible 75
2011 Synergy Series 358
2012 ZL1 1,971
2012 45th Anniversary 8,283
2012 Transformers 3 1,411
2012 COPO (race only) 69
2013 Hot Wheels Edition 1,524
2013 COPO (race only) 69
Steering wheel
Steering wheel, gauges and centre stack of a yellow fifth-generation Camaro, dashboard view, at the Geneva motor show; model year not confirmed, 2010–15 Photo: David Villarreal Fernández, CC BY-SA 2.0, via Wikimedia Commons; faces blurred Original photograph License
Red fifth-generation Camaro coupe with dark twin stripes
Red fifth-generation Camaro coupe with dark twin stripes, front three-quarter view, in a parking lot; model year not confirmed, 2010–15 Photo: Alexandre Prévot, CC BY-SA 2.0, via Wikimedia Commons; licence plates and faces blurred Original photograph License
Black fifth-generation Camaro coupe with silver wheels and dark hood stripe
Black fifth-generation Camaro coupe with silver wheels and dark hood stripe, front three-quarter view, parked on grass by woodland; model year not confirmed, 2010–15 Photo: Alexandre Prévot, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Yellow fifth-generation Camaro coupe with black hood stripes
Yellow fifth-generation Camaro coupe with black hood stripes, black wheels and Transformers Autobot fender badge, front three-quarter view, parked on grass at an outdoor gathering beside a van; model year not confirmed, 2010–15 Photo: crash71100, CC0, via Wikimedia Commons; licence plates blurred Original photograph License
Red fifth-generation Camaro ZL1 coupe with vented hood
Red fifth-generation Camaro ZL1 coupe with vented hood, front three-quarter view cropped at the rear, at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons; faces blurred Original photograph License

Production and sales

Year Model-year production US sales (calendar year)
2010 — 81,299
2011 106,987 88,249
2012 90,310 84,391
2013 — 80,567
2014 97,632 86,297
2015 — 77,502

Model-year totals are GM figures where they have been published. Sales are calendar-year US deliveries, which are not the same thing. The 2012 and 2013 sales figures use the January–December columns of GM's December 2013 U.S. deliveries report.

fifth-generation Camaro script badge on a silver front fender with wheel arch
fifth-generation Camaro script badge on a silver front fender with wheel arch, badge detail, at the Chicago auto show; model year not confirmed, 2010–15 Photo: Chad Kainz, CC BY 2.0, via Wikimedia Commons Original photograph License
Gold Chevrolet bowtie badge on a dark fifth-generation Camaro upper grille
Gold Chevrolet bowtie badge on a dark fifth-generation Camaro upper grille, badge detail close-up, at a car show; model year not confirmed, 2010–15 Photo: Jeremy, CC BY 2.0, via Wikimedia Commons Original photograph License
Bright green fifth-generation Camaro coupe with black hood stripe and black wheels
Bright green fifth-generation Camaro coupe with black hood stripe and black wheels, front three-quarter and side view, parked on a town street; model year not confirmed, 2010–15 Photo: Alexandre Prevot, CC BY-SA 2.0, via Wikimedia Commons; street numbers blurred Original photograph License
White fifth-generation Camaro coupe with dark hood insert
White fifth-generation Camaro coupe with dark hood insert, side profile to front three-quarter view, parked on grass under trees by a white fence; model year not confirmed, 2010–15 Photo: Rob Bixby, CC BY 2.0, via Wikimedia Commons Original photograph License
Yellow fifth-generation Camaro coupe with open trunk lid showing the cargo area
Yellow fifth-generation Camaro coupe with open trunk lid showing the cargo area, rear detail view, at an indoor motor show; model year not confirmed, 2010–15 Photo: David Villarreal Fernández, CC BY-SA 2.0, via Wikimedia Commons Original photograph License
Red hood with large hockey team logo on a black fifth-generation Camaro special edition
Red hood with large hockey team logo on a black fifth-generation Camaro special edition, hood detail view, at an indoor auto show; model year not confirmed, 2010–15 Photo: Tony, CC BY-SA 2.0, via Wikimedia Commons Original photograph License

Model years
